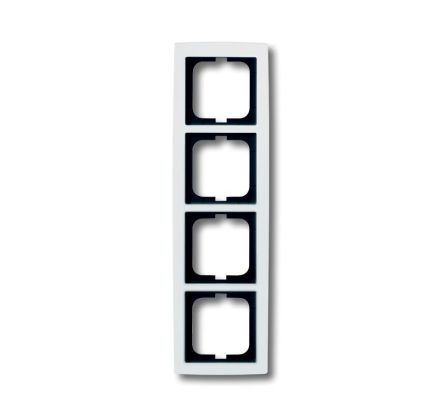

Busch-Jaeger 1724-84 cover frame, 4-way frame studio white

Busch-Jaeger 1724-84 cover frame, 4-way frame studio white

In stock

SKU: 118389

Price on request

€21.98

€0

Into a basketIn the basketGo

Overview

Cover frame, studio white, solo, frame solo, cover frame 4-way frame For vertical or horizontal installation. Protection class device: IP 20

Property	Value
Height:	19 mm
Width:	101 mm
Material:	plastic
RAL number (similar):	9016
Mounting direction:	horizontal and vertical
Number of units:	4
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	309 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	yes
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of units horizontal:	4
Number of units vertical:	4
Mounting type:	Clamp fastening
Hole diameter (opening):	71 mm
Installation width:	63 mm
Installation height:	63 mm
Transparent:	no
Number of switch inserts:	4
With mounting frame:	no
Impact resistance:	IK03

Characteristics

HAB1724-84

Manufacturer

HAN2CKA001754A4112

GTIN4011395996171

Number of Units4

Number of units horizontal4

Number of units vertical4

Number of switch inserts4

Surface finishGlittering

Mounting typeClamp fastening

Width101 mm

Diameter bore (opening)71 mm

Installation width63 mm

Installation height63 mm

Color

Suitable for built-in installationNo

Suitable for device installation ductYes

Suitable for underfloor duct boxNo

Halogen freeYes

Height19 mm

With hinged lidNo

With mounting frameNo

Mounting directionHorizontal and vertical

SurfaceUntreated

RAL number (similar)9016

Impact resistanceIK03

IP protection)IP20

Text field/label areaNo

Depth309 mm

TransparentNo

MaterialPlastic

Material qualityThermoplastic
