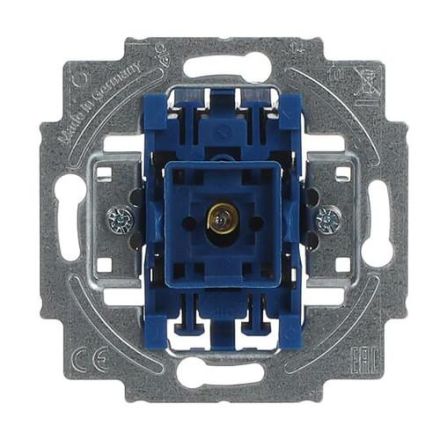

Busch-Jaeger 2000/6 USGL rocker switch insert, on and off switching

In stock
SKU: 121957
€10.45
Into a basketIn the basketGo

Overview

With glow lamp 8338-1. Only to be installed in conjunction with commercially available flush-mounted device boxes in accordance with DIN 49073, Part 1, or Busch-Jaeger item no. 3040 flush-mounted box for masonry, 3050 flush-mounted box for hollow walls or 3060 flush-mounted box for concrete) Lamp for replacement requirements 8360, 8362, 8363 and LED inserts.


Version: On and off switching
Design: Flush-mounted

PropertyValue
Color:blue
Suitable for protection class (IP):IP20
Circuit type:Toggle switch
Operating method:Rocker/button
Number of actuating rockers:1
Mounting type:Flush-mounted
Push button:no
Composition:Basic element
Fastening type:Claw/screw fastening
Material:Plastic
Material quality:Thermoplastic
Halogen-free:yes
Surface:untreated
Surface finish:matt
RAL number (similar):5010
Nominal voltage:250 V
Switching current for fluorescent lamps:10 AX
Feedback contact:no
Washing machine switch:no
Connection type:Plug-in terminal
Lighting:yes
Lighting type:Incandescent lamp
Lighting function:Orientation
Rated current:10 A
Installation depth:32 mm
Device depth:71 mm
Device width:71 mm
Device height:32 mm
With mounting plate:yes
Text field/labeling area:no
Min. depth of the device box:32 mm

Characteristics

Feedback contactNo
Number of actuating rockers1
Circuit typeChangeover switch
LightingYes
Switching current for fluorescent lamps10 AX
Push buttonNo
Washing machine switchNo
Lighting functionOrientation
HAB2000/6 USGL
ManufacturerBUSCH-JAEGER
HAN2CKA001012A1127
GTIN4011395007600
Connection typePlug-in terminal
Surface finishFrosted
Operating modeRocker/Button
Mounting typeClaw/screw fastening
Rated current10A
Installation depth32 mm
ColorBlue
Suitable for protection class (IP)IP20
Device width71 mm
Device height32 mm
Device depth71 mm
Halogen freeYes
Min. depth of the device box32 mm
With mounting plateYes
Mounting typeFlush-mounted
Nominal voltage250V
SurfaceUntreated
RAL number (similar)5010
Text field/label areaNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
