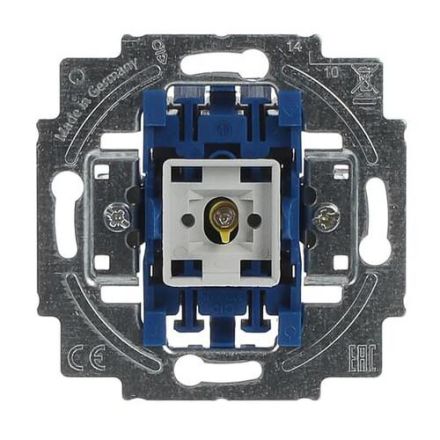

Busch-Jaeger 2400/6 USK rocker control switch insert, on and off switching with N terminal

Busch-Jaeger 2400/6 USK rocker control switch insert, on and off switching with N terminal

In stock

SKU: 317941

Price on request

€20.86

€0

Overview

Rocker control switch insert, flush-mounted installation boxes and inserts, inserts for flush-mounted switch ranges, rocker control switch insert on and off switching with N terminal with glow lamp. Nominal current: 16 AX Protection class device: IP 20 IEC 60669-1

Property	Value
Color:	blue
Suitable for protection class (IP):	IP20
Circuit type:	Toggle switch
Operating method:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Flush-mounted
Push button:	no
Composition:	Basic element
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	5010
Nominal voltage:	250 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug-in terminal
Lighting:	yes
Lighting type:	Incandescent lamp
Lighting function:	Control and orientation
Rated current:	16 A
Installation depth:	32 mm
Device depth:	71 mm
Device width:	71 mm
Device height:	32 mm
With mounting plate:	yes
Text field/labeling area:	no
Min. depth of the device box:	32 mm
