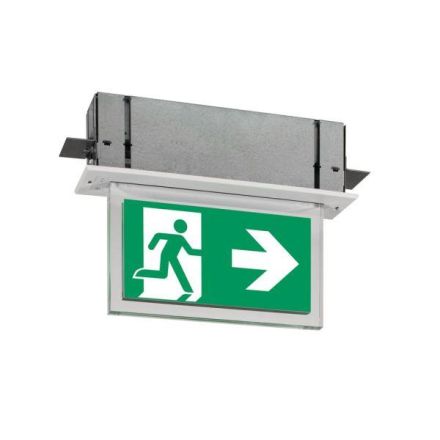

CEAG emergency light 1884 1-8h/D LED CGLine+ LED self-contained light

Single battery light including foil unit with test button and colored LEDs for differentiated status display for autonomous operation or for connection to the central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months). 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. The pictogram disc is not included in the scope of delivery and must be ordered separately. Mounting type: built-in Light source: LED Lamp power: 6.7 W Housing material: steel Housing color: white Type of marking: one-sided/two-sided Suitable for marking type: acrylic glass plate Monitoring device: automatic self-test Ball-proof: No Switching type: permanent/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: I Protection type (IP): IP20 Nominal operating time: 3 h With light source: Yes Installation length: 370 mm Installation width: 120 mm Installation depth: 72 mm Luminous flux in emergency operation: 22 % Detection range: 28 m
