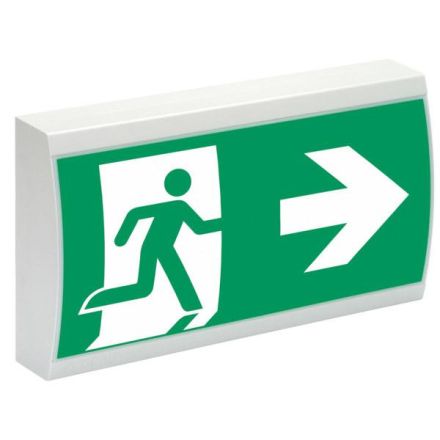

CEAG emergency light 28011 1-8h/D LED CGLine+ (Set) LED self-contained light

Single battery light including foil unit with test button and colored LEDs for differentiated status display for autonomous operation or for connection to central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months). 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. The cover plate is not included in the scope of delivery and must be ordered separately. Mounting type: Wall mounting Light source: LED Lamp power: 6.6 W Housing material: Plastic Housing color: gray Type of marking: only one-sided Suitable for marking type: Insert sheet/plate Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (IP): IP41 Nominal operating time: 3 h With light source: Yes Length: 342 mm Width: 200 mm Height/depth: 68 mm Luminous flux in emergency operation: 70 % Detection range: 32 m
