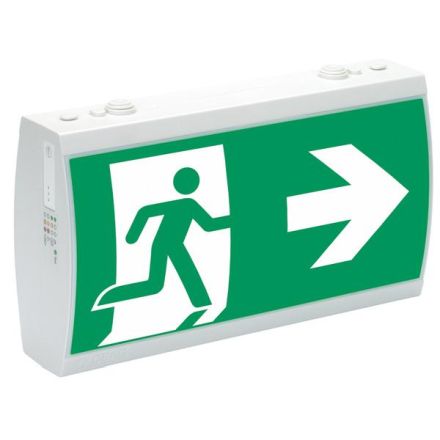

Single battery light including foil unit with test button and colored LEDs for differentiated status display for autonomous operation or for connection to the central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months). 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. The cover plates are not included in the scope of delivery and must be ordered separately. Mounting type: Ceiling mounting Light source: LED Lamp power: 8.3 W Housing material: Plastic Housing color: gray Type of marking: one-sided/two-sided Suitable for marking type: Insert sheet/plate Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (IP): IP41 Nominal operating time: 3 h With light source: Yes Length: 341 mm Width: 202 mm Height/depth: 92 mm Luminous flux in emergency operation: 45 % Detection range: 32 m
| Property | Value |
| Housing color: | gray |
| Protection rating (IP): | IP41 |
| Protection class: | II |
| Voltage type: | AC |
| Nominal voltage: | 220 to 240 V |
| Detection range: | 32 m |
| Length: | 342 mm |
| Width: | 200 mm |
| Height/depth: | 95 mm |
| Max. System performance: | 8.3 W |
| Battery type: | Lithium-ion |
| Nominal operating time: | 1 to 8 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | other |
| With remote switch connection: | yes |
| Cover material: | Plastic opal |
| Installation width: | 220 mm |
| With Light source: | yes |
| Installation length: | 350 mm |
| Monitoring device: | Monitoring module (centrally supplied system) |
| Housing material: | Plastic |
| Type of marking: | one-/two-sided |
| Suitable for type of marking: | sticker |
| Feed: | decentralized (single battery) |
| With pictogram: | yes |
| Number of Luminaire heads: | 1 |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | 5 to 35 °C |
| Power factor: | 0.94 |
| Type of wiring: | suitable for Through wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Plug connection |
