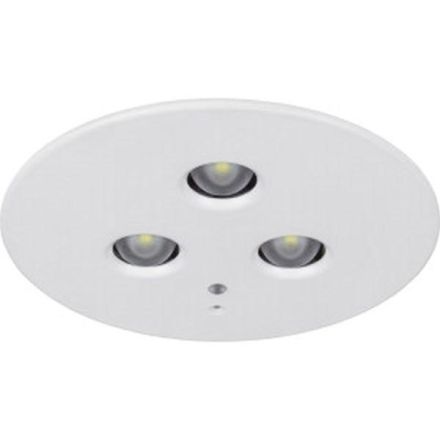

CEAG emergency light 3583 1-8h/D LED CGLine+ LED emergency light

CEAG emergency light 3583 1-8h/D LED CGLine+ LED emergency light

In stock

SKU: 898737

Price on request

€409.75

€0

Overview

Safety light for escape route illumination. Self-contained light for stand-alone operation or for connection to the central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months), emergency light operating time freely selectable: 1 h, 3 h or 8 h, long LED service life approx. 50,000 h, 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for operating idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to + 35°C. Mounting type: Built-in Light source: LED Housing material: Steel Housing color: white Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (IP): IP20 Nominal operating time: 8 h With light source: Yes Outside diameter: 80 mm Installation diameter: 60 mm Luminous flux in emergency operation: 25 %

Property	Value
Housing color:	Aluminum
Protection rating (IP):	IP20
Protection class:	II
Voltage type:	AC
Nominal voltage:	220 to 240 V
Color temperature:	6500 K
Length:	500 mm
Width:	80 mm
Height/depth:	80 mm
Max. System performance:	6.6 W
Battery type:	Lithium-ion
Nominal operating time:	1 to 8 h
Rated luminous flux according to IEC 62722-2-1:	385 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	other
With remote switch connection:	yes
Installation diameter:	80 mm
Cover material:	other
Outer diameter:	80 mm
With light source:	yes
Monitoring device:	Monitoring module (centrally supplied system)
Mounting type:	Flush-mounted
Housing material:	Aluminium
Suitable for marking type:	other
Feed-in:	decentralized (single battery)
With pictogram:	no
Number of Luminaire heads:	1
Light distributor:	Focus lens
Rated service life L70/B50 at 25 °C:	50000 h
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	0 to 30 °C
Power factor:	0.93
Installation height/depth:	3 mm
Type of wiring:	suitable for Through wiring
Number of poles:	6
Conductor cross-section:	2.5 mm²
Connection type:	Plug connection
