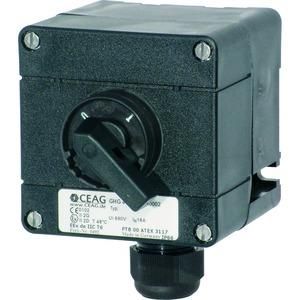

Ex-e control device GHG 411 81 - polyamide for zone 1/21, cable entries: 1 x M25, polyamide, SCT, Pos. 1: SCT mini control switch 6A, 2S, SW 5, contact material: silver contacts, cable entries/housing holes: 1 x M25 Ex-e cable entries for cables from Ø 8 - 17 mm, housing material: polyamide, rated voltage: 690 V AC, rated current: 16 A, rated making/breaking capacity AC15 according to EN 60947-5-1: Ue 250 V / Ie 6 A (Ex 41) / Ue 500 V / Ie 4 A (Ex 41) / Ue 230 V / Ie 6 A (Ex 23) / Ue 500 V / Ie 4 A (Ex 23), marking according to 94/9/EC: Ex II 2 G Ex ed ib m IIC T6 / Ex II 2 D Ex tD A21 IP66 T80°C, EC type examination certificate: PTB 00 ATEX 3117, Permissible ambient temperature: -20 °C to 40 °C, Dimensions (L x W x H): 85 x 85 x 77.5 mm, Weight: 0.45 kg, Protection class: I, Degree of protection according to EN 60529: IP66, Number of command points: 1, Number of selector switches: 1, Suitable for EMERGENCY STOP: No, Rated control supply voltage Us at AC 50 Hz: 690 V, Rated control supply voltage Us at AC 60 Hz: 690 V, Color of the upper part of the housing: black, Material of the housing: plastic, Degree of protection (IP): IP65, Number of contacts as normally open: 1, Number of contacts as Opener: 1
| Property | Value |
| Protection class (IP): | IP65 |
| Housing material: | plastic |
| Commodity statistical number: | 85371095 |
| Number of command points: | 1 |
| Colour of the upper part of the housing: | black |
| Number of selector switches: | 1 |
| Number of contacts as normally closed contacts: | 1 |
| Number of contacts as normally open contacts: | 1 |
