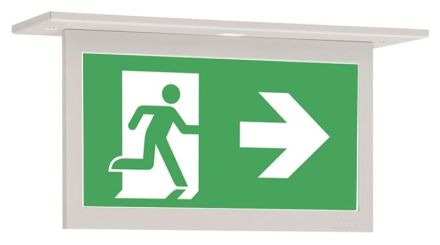

CEAG emergency light GuideLed 11824 1-8h/D CGLine+ built-in LED self-contained light

Mounting kit for GuideLed CGLine+ self-contained light for autonomous operation or for connection to central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months), emergency light operating time freely selectable: 1 h, 3 h or 8 h, Lightguide technology with 3-chip LEDs for high, uniform luminance in accordance with DIN 4844-1, long service life 50,000 h, 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for operating idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. The pictogram disc including LEDs is not included in the scope of delivery and must be ordered separately. Mounting type: built-in Light source: LED Housing material: plastic Housing colour: grey Type of marking: one-sided/two-sided Suitable for marking type: acrylic glass plate Monitoring device: automatic self-test Ball-proof: No Switching type: permanent/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralised (single battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (IP): IP40 Nominal operating time: 8 h With light source: No Installation length: 363 mm Installation width: 83 mm Installation depth: 51 mm Luminous flux in emergency operation: 8 % Detection range: 30 m
