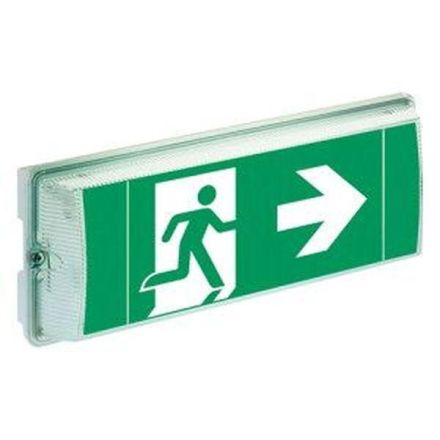

Single battery light including cover, 3 pictogram films (arrow left, right and bottom) in accordance with ISO 7010, film unit with test button and colored LEDs for differentiated status display for autonomous operation or for connection to the central monitoring device CGLine+. Automatic function test (weekly) and automatic operating time test (every 3 months). 1 minute switch-back delay after power is restored. Blocking function via central monitoring device for operating idle times. Permissible temperature range: permanent light -5°C to +30°C / standby light 0°C to +35°C. Mounting type: Wall mounting Light source: LED Lamp power: 6.6 W Housing material: Plastic Housing color: white Cover material: Plastic, structured Type of marking: only one-sided Suitable for type of marking: Sticker Monitoring device: automatic self-test Ball-proof: No Switching type: Maintained/standby With remote switch connection (VDE 0100-718,0108-100): Yes Power supply: decentralized (single battery) Nominal voltage: 220 - 240 V Protection class: I Protection type (IP): IP65 Nominal operating time: 3 h With light source: Yes Length: 400 mm Width: 160 mm Height/depth: 103 mm Luminous flux in emergency operation: 70 % Detection range: 26 m
