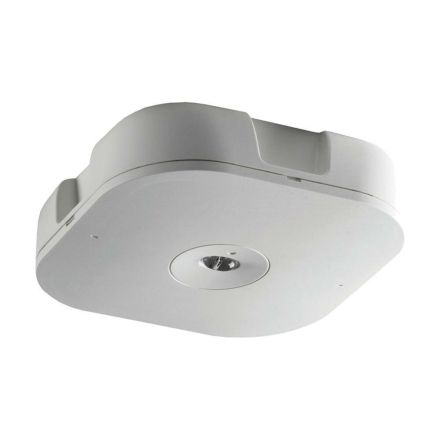

CEAG emergency light Micropoint2 1h MTD Escape C/W Intellem emergency light

In stock

SKU: 898683

Price on request

€227.92

€0

Overview

Safety light Micropoint 2 E AT 1h ceiling mounting, with optics for escape route illumination, automatic test

Property	Value
Rated luminous flux according to IEC 62722-2-1:	145 lm
Color temperature:	6200 K
Protection class (IP):	IP44
Impact resistance:	IK04
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	35 - 5 °C
Length:	170 mm
Width:	170 mm
Height/Depth:	50 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	2.5 W
Power factor:	0.5
Operating device:	LED operating device, current-controlled
Connection type:	screw connection
Number of poles:	4
With light source:	yes
Light source:	LED not replaceable
Light distributor:	Focus lens
Housing color:	white
Housing material:	plastic
Material of Cover:	other
Luminaire with limited surface temperature 'D-mark':	yes
Packaging unit:	1
Weight:	0.45
Mounting type:	Ceiling mounting
Socket:	without
Feed:	decentralized (single battery)
Suitable for marking type:	other
Battery type:	NiCd
With Remote switch connection:	yes
Monitoring device:	automatic self-test
Luminous flux in standby mode:	145 lm
Nominal operating time:	1 h
Function:	Escape route lighting
Conductor cross-section:	2.5 mm²
Number of light heads:	1
Suitable for number of lamps:	1
Protection class (NEMA):	other
Installation height/depth:	50 mm
Short description:	Safety light as recessed ceiling light
