CEAG emergency light SafeLite SL20 IP42 emergency light

CEAG emergency light SafeLite SL20 IP42 emergency light

In stock

SKU: 898655

Price on request

€72.40

€0

Overview

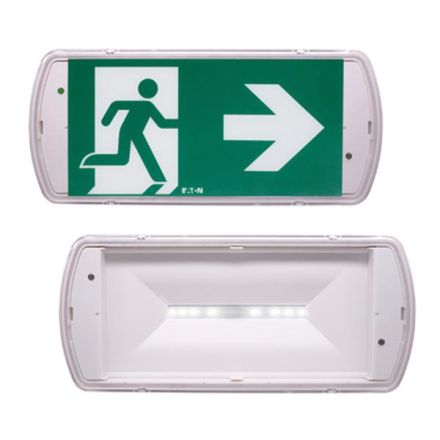

SafeLite, can be used as a one-sided escape sign or as a safety light, IP42, including pictogram set (arrow right, left, bottom), 20 m recognition range

Property	Value
Housing color:	white
Protection rating (IP):	IP42
Protection class:	II
Voltage type:	AC
Nominal voltage:	230 V
Detection range:	20 m
Color temperature:	5053 K
Length:	270 mm
Width:	119 mm
Height/depth:	49 mm
Max. system power:	4.2 W
Battery type:	NiCd
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	60 lm
Luminous flux in standby mode:	100 lm
Operating device:	electronic transformer
Light source:	LED not replaceable
Impact resistance:	IK04
Socket:	without
With Remote switch connection:	no
Cover material:	transparent plastic
Installation width:	119 mm
With light source:	yes
Installation length:	270 mm
Monitoring device:	without
Mounting type:	surface/installation
Housing material:	plastic
Suitable for marking type:	sticker
Feed-in:	decentralized (single battery)
With Pictogram:	no
Suitable for number of light sources:	1
Number of lamp heads:	8
Light distributor:	Reflector
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	5 to 40 °C
Installation height/depth:	49 mm
Number of poles:	2
