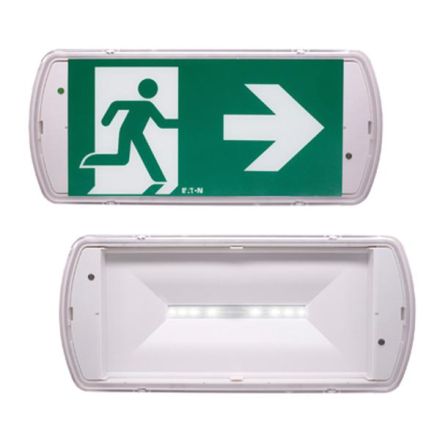

CEAG emergency light SafeLite SL20 IP65 emergency light

In stock
SKU: 898759
€73.24
Into a basketIn the basketGo

Overview

The SafeLite single battery light with a nominal operating time of 3 hours is designed for continuous and standby operation. The light is supplied as standard with a pictogram set (arrow left, right, bottom) so that it can be used as an escape sign light with a recognition range of 20 m. Extensive accessories such as an IP65 kit or a ball protection basket expand the possible uses of the light.

PropertyValue
Housing color:white
Protection rating (IP):IP65
Protection class:II
Voltage type:AC
Nominal voltage:230 V
Detection range:20 m
Color temperature:5053 K
Length:270 mm
Width:119 mm
Height/depth:49 mm
Max. system power:4.2 W
Battery type:NiCd
Nominal operating time:3 h
Rated luminous flux according to IEC 62722-2-1:60 lm
Luminous flux in standby mode:100 lm
Operating device:electronic transformer
Light source:LED not replaceable
Impact resistance:IK04
Socket:without
With Remote switch connection:no
Cover material:transparent plastic
Installation width:119 mm
With light source:yes
Installation length:270 mm
Monitoring device:without
Mounting type:surface/installation
Housing material:plastic
Suitable for marking type:sticker
Feed-in:decentralized (single battery)
With Pictogram:no
Suitable for number of light sources:1
Number of lamp heads:8
Light distributor:Reflector
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:no
Rated ambient temperature according to IEC 62722-2-1:5 to 40 °C
Power factor:0.96
Installation height/depth:49 mm
Number of poles:2

Characteristics

HABSafeLite SL20 IP65
ManufacturerCEAG Notlicht
HAN40071349555
GTIN3660191606091
Rated luminous flux according to IEC 62722-2-160lm
Rated ambient temperature according to IEC 62722-2-15 to 40 °C
Operating deviceElectronic transformer
Width119 mm
Installation width119 mm
Installation height/depth49 mm
Installation length270 mm
Color temperature5053K
VersionWithout
Suitable for number of light sources1
Housing colorWhite
Height/Depth49 mm
Power factor0.96
Luminaire with limited surface temperature D-mark according to EN 60598-2-24No
LampsLED not replaceable
Light distributorReflector
Length270 mm
Max. system performance4.2W
With light sourceYes
Mounting typeConstruction/Installation
Nominal voltage230V
Number of poles2
Impact resistanceIK04
IP protection)IP65
Protection classII
Voltage typeAC
Cover materialPlastic transparent
Housing materialPlastic
