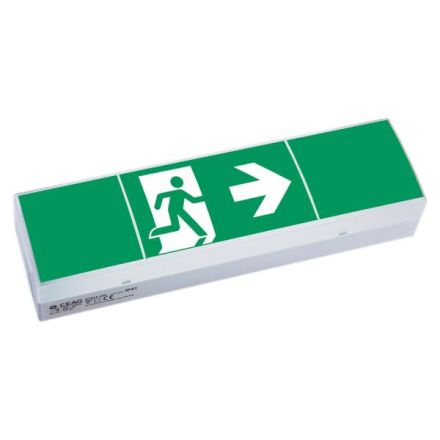

CEAG emergency light Style II 51011 CG-S LED emergency light

Safety or escape sign light with one-sided light emission in accordance with DIN EN 60598-1, DIN EN 60598-2-22, DIN 4844-1 and DIN EN 1838. Modular light consisting of: Light housing made of 850°C glow wire-resistant, halogen-free polycarbonate for tool-free assembly on the quick assembly kit. Including clear protective cover and three pictogram films (arrow right, left, bottom, in accordance with ISO 7010). As a safety light: Symmetrical light distribution for surface illumination with at least 1lx in accordance with DIN EN 1838 for light point heights up to 9.5 m. Maximum distance between lights: > 10 m from 3 m light point height and > 13 m from 5 m light point height (calculation basis: at least 1lx in the middle of the escape route, maintenance factor = 0.8). As an escape sign: Illumination in accordance with DIN 4844-1: average luminance of the white contrast color Lm >= 500 cd/m². Long service life > 50,000 hours due to optimized LED operating conditions. Special LED converter with integrated monitoring module for individual luminaire monitoring with 20-digit address switches. Mixed operation of the switching types (standby light, permanent light or switched permanent light) within a circuit without additional data or switching lines to the luminaires in conjunction with suitable group or central battery systems with STAR technology is possible. Permissible temperature range: -20°C to + 40°C. The quick assembly kit is not included in the scope of delivery and must be ordered separately. Mounting type: Wall mounting Light source: LED Lamp power: 4 W Switching: Other Housing material: Plastic Housing color: Gray Cover material: Plastic, opal Type of marking: One-sided only Suitable for type of marking: Sticker Monitoring device: Monitoring module (centrally supplied system) Ball-proof: No Switching type: Maintained operation/standby operation With remote switch connection (VDE 0100-718,0108-100): Yes Feed-in: Central (central battery) Nominal voltage: 220 - 240 V Protection class: II Protection type (
