CEAG emergency light SV Euro 1-3/D LED LED emergency light

CEAG emergency light SV Euro 1-3/D LED LED emergency light

In stock

SKU: 898664

Price on request

€160.78

€0

Overview

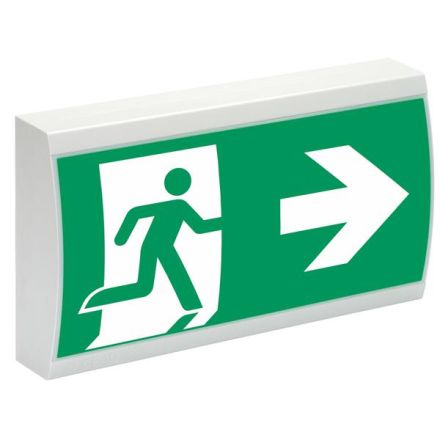

The SV Euro 1 LED light is supplied as standard with a pictogram film set, so that it can also be used as an escape sign light with a recognition range of 32 m. A test button with a green LED is used to check the charge. An IP54 set is optionally available for increased sealing requirements indoors or in protected outdoor areas. A ball protection basket also expands the light's possible uses. Depending on the application, it is available with a nominal operating time of one or three hours.

Property	Value
Housing color:	white
Protection rating (IP):	IP41
Protection class:	II
Voltage type:	AC
Nominal voltage:	230 to 240 V
Detection range:	30 m
Color temperature:	6500 K
Length:	341 mm
Width:	68 mm
Height/Depth:	202 mm
Max. System performance:	1.6 W
Battery type:	NiCd
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	180 lm
Luminous flux in standby mode:	180 lm
Operating device:	electronic transformer
Light source:	LED not replaceable
Impact resistance:	IK03
Socket:	other
With Remote switch connection:	no
Cover material:	transparent plastic
With light source:	yes
Monitoring device:	test button
Mounting type:	surface-mounted/built-in
Housing material:	plastic
Suitable for type of marking:	sticker
Feed-in:	decentralized (single battery)
With pictogram:	yes
Suitable for number of light sources:	1
Number of Luminaire heads:	24
Light distributor:	Reflector
Rated service life L70/B50 at 25 °C:	100000 h
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	5 to 35 °C
Power factor:	0.5
Type of wiring:	suitable for Through wiring
Number of poles:	2
Conductor cross-section:	2.5 mm²
Connection type:	Plug connection
