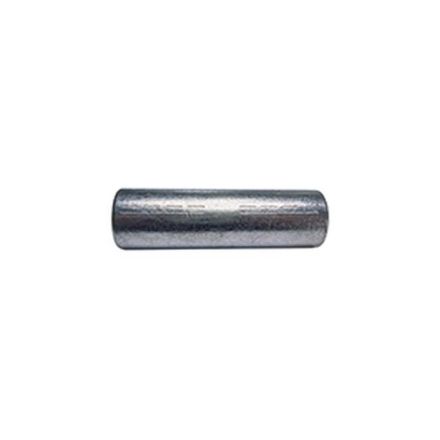

Cellpack 125900 DVZ50LD DIN46267 CU press connector

In stock

SKU: 901413

Price on request

€7.08

€0

Overview

Strain-relieved connector, hexagonal compression with separating bar for copper conductors, suitable for sleeves. Areas of application: Especially for transition and locking sleeves, connectors for copper conductors RM/SM according to DIN0295. Scope of delivery: compression connector.

Property	Value
Nominal cross section:	50 mm²
Suitable for fine-stranded conductors:	no
Insulation:	without
Design:	DIN design
Suitable for high temperatures (up to 650 °C):	no
Suitable for multi-stranded conductors:	yes
Suitable for enamelled wire:	no
Material:	copper
Suitable for solid Conductor:	no
Suitable for flat conductors:	no
Sleeve shape:	short
Suitable for round conductors:	yes
For tensile connections:	no
Oil stop/central bar:	yes
Voltage range:	up to 10 kV
Connection type:	butt connector
