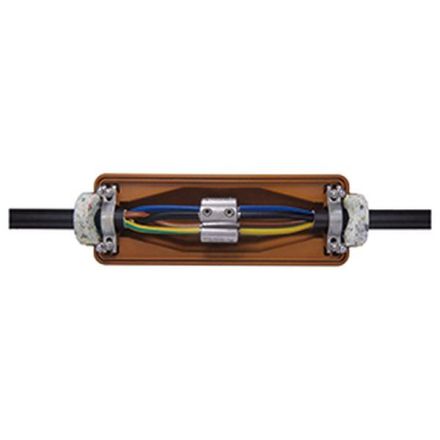

Cast resin connection sleeve can be used universally to connect plastic cables with insulation made of PVC, PE, VPE and EPR and paper-insulated cables. Suitable for press or screw connectors on copper and aluminum conductors. Areas of application: Indoors, outdoors, soil, water, installation ducts. Properties: Compact dimensions, high-quality, brown, impact-resistant plastic molds, integrated strain relief, large filling opening for easy casting, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, longitudinally and transversely watertight, high electrical insulation values, high mechanical strength, ready for use, simple and quick installation, time and cost saving. Scope of delivery: Hydrolysis-resistant PUR cast resin EG, ready to mix in a practical two-chamber mixing bag, seals, plastic mold, protective gloves, strain relief, assembly instructions.
| Property | Value |
| Nominal conductor cross-section: | 95 to 150 mm² |
| Number of conductors: | 4 |
| Halogen-free: | no |
| Design: | Cast resin |
| Mining approval: | no |
| With concentric shielding: | yes |
| For connecting paper-insulated cables with plastic-insulated cables: | yes |
| Suitable for: | N(A)YY |
| Rated voltage U0/U (Um): | 0.6/1 (1.2) kV |
| Insulating material: | Paper/plastic |
| Connection accessories supplied: | without |
