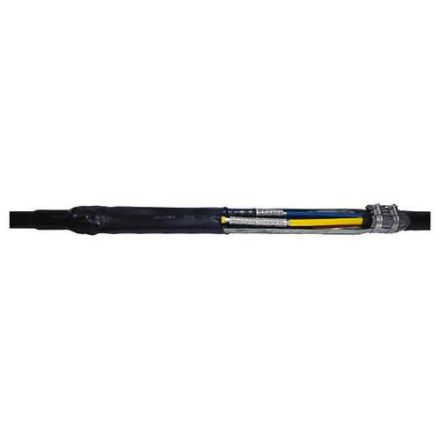

Cellpack 130945 SMHA4 35-150 heat shrink connection sleeve

In stock
SKU: 901502
€170.64
Into a basketIn the basketGo

Overview

Heat shrink connection sleeve can be used universally to connect armored (armored) plastic cables with PVC, PE and VPE insulation. Suitable for press connectors on aluminum and copper cables. Areas of application: Indoors, outdoors, soil, water, installation ducts, empty pipes. Properties: Compact dimensions, large line and cable cross-section range, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, free of paint wetting impairment substances, halogen-free, transversely watertight, high electrical insulation values, high mechanical strength. Scope of delivery: Outer sleeve, inner sleeves, armor transfer set, cleaning cloth, emery cloth, assembly instructions.

PropertyValue
Nominal conductor cross-section:35 to 150 mm²
Number of conductors:4
Halogen-free:yes
Design:Heat shrink
Mining approval:no
With concentric shielding:no
For connecting paper-insulated cables with plastic-insulated cables:no
Suitable for:other
Rated voltage U0/U (Um):0.6/1 (1.2) kV
Insulating material:Plastic
Connection accessories supplied:without

Characteristics

Number of conductors4
Connection accessories includedWithout
Nominal conductor cross-section35 to 150 mm²
Rated voltage U0/U (Um)0,6/1 (1,2) kV
With concentric shieldingNo
For connecting paper-insulated cables with plastic-insulated cablesNo
HABSMHA4 35-150
ManufacturerCellpack
HAN130945
GTIN4010311086064
VersionHeat shrink
Mining licenseNo
Suitable forOther
Halogen freeYes
Material of the insulation materialPlastic
