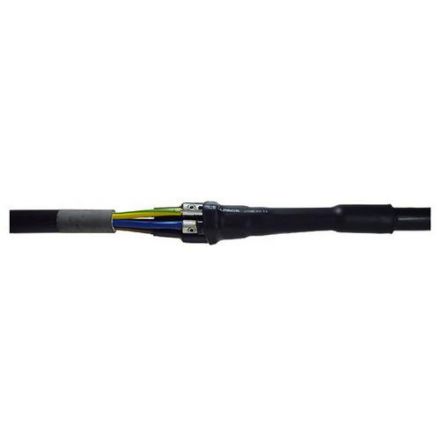

Cellpack 145362 SMH5 1.5-6V with shrink connection sleeve

In stock
SKU: 900409
€23.09
Into a basketIn the basketGo

Overview

Heat shrink connection sleeve for universal use for connecting plastic cables and lines with insulation made of PVC, PE and VPE. With screw connectors with grub screw, suitable for aluminum and copper conductors. Areas of application: indoors, outdoors, soil, water, installation ducts, empty pipes. Properties: compact dimensions, large line and cable cross-section range, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, free of substances that impair paint wetting, halogen-free, transversely watertight, high electrical insulation values, high mechanical strength. Scope of delivery: outer sleeve, inner sleeves, screw connectors, hexagon wrench, cleaning cloth, emery cloth, assembly instructions.

PropertyValue
Nominal conductor cross-section:1.5 to 6 mm²
Number of conductors:5
Halogen-free:yes
Design:Heat shrink
Mining approval:no
With concentric shielding:no
For connecting paper-insulated cables with plastic-insulated cables:no
Suitable for:N(A)YY
Rated voltage U0/U (Um):0.6/1 (1.2) kV
Insulating material:Plastic
Connection accessories supplied:Screw connectors

Characteristics

Number of conductors5
Connection accessories includedScrew connectors
Nominal conductor cross-section1.5 to 6 mm²
Rated voltage U0/U (Um)0,6/1 (1,2) kV
With concentric shieldingNo
For connecting paper-insulated cables with plastic-insulated cablesNo
HABSMH5 1.5-6V with verb
ManufacturerCellpack
HAN145362
GTIN4010311020600
VersionHeat shrink
Mining licenseNo
Suitable forN(A)YY
Halogen freeYes
Material of the insulation materialPlastic
