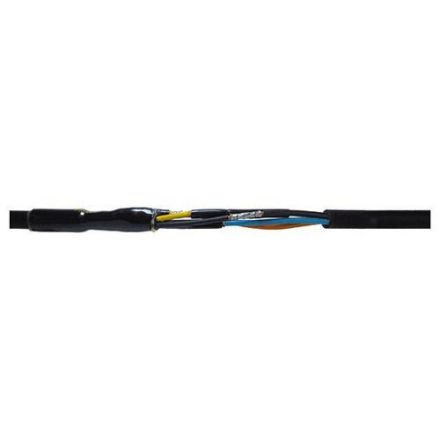

Cellpack 145482 SMH4G 35-95 shrink connection sleeve

In stock
SKU: 900320
€97.43
Into a basketIn the basketGo

Overview

Heat shrink connection sleeve can be used universally to connect cables with insulation made of EPR (e.g. A07RN-F, H07RN-F). Suitable for press connectors. Areas of application: indoors, outdoors, soil, water, installation ducts, empty pipes. Properties: compact dimensions, large line and cable cross-section range, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, free from substances that impair paint wetting, halogen-free, transversely watertight, high electrical insulation values, high mechanical strength. Scope of delivery: outer sleeve, inner sleeves, filling material, cleaning cloth, emery cloth, assembly instructions.

PropertyValue
Nominal conductor cross-section:35 to 95 mm²
Number of conductors:4
Halogen-free:yes
Design:Heat shrink
Mining approval:no
With concentric shielding:no
For connecting paper-insulated cables with plastic-insulated cables:no
Suitable for:H07RN-F
Rated voltage U0/U (Um):0.6/1 (1.2) kV
Insulating material:Plastic
Connection accessories supplied:without

Characteristics

Number of conductors4
Connection accessories includedWithout
Nominal conductor cross-section35 to 95 mm²
Rated voltage U0/U (Um)0,6/1 (1,2) kV
With concentric shieldingNo
For connecting paper-insulated cables with plastic-insulated cablesNo
HABSMH4G 35-95
ManufacturerCellpack
HAN145482
GTIN4010311004259
VersionHeat shrink
Mining licenseNo
Suitable forH07RN-F
Halogen freeYes
Material of the insulation materialPlastic
Cellpack 145482 SMH4G 35-95 shrink connection sleeve
