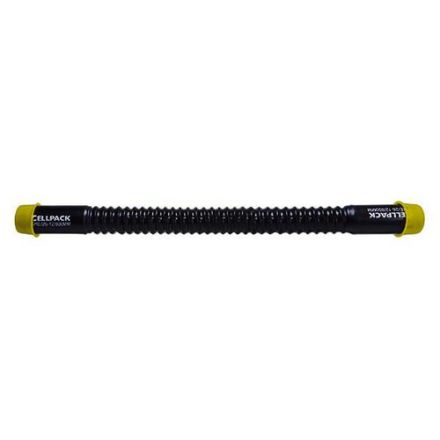

Cellpack 145611 SHE 54-26/800 wall duct

In stock
SKU: 900307
€35.71
Into a basketIn the basketGo

Overview

Heat-shrink house entry can be used universally for introducing all types of cables and lines through walls into buildings. Areas of application: Mechanical protection for cables and lines that run through walls. Properties: Large line and cable cross-section range, coated on the inside with sealant, resistant to alkaline earths, stabilized against UV rays, free from substances that impair paint wetting, halogen-free, can be extended, gas-tight up to 0.2 bar, absolutely moisture-tight, longitudinally watertight up to 1.0 bar, high mechanical strength. Scope of delivery: House entry, assembly instructions.

PropertyValue
Installation type:Wall openings
Design:Heat shrink
Max. Wall thickness:500 mm
Cable diameter:26 to 54 mm
Inner diameter before shrinking:65 mm
Inner diameter after shrinking:25 mm
Length:0.8 mm
Disassembly possible:yes
Diameter of wall opening:90 mm
Pipe diameter:90 mm
Cable bundling possible:yes

Characteristics

Cable diameter26 to 54 mm
Pipe diameter90 mm
HABSHE54-26/800
ManufacturerCellpack
HAN145611
GTIN4010311005317
VersionHeat shrink
Inner diameter after shrinkage25 mm
Inner diameter before shrinking65 mm
Length0.8 mm
Mounting typeWall breakthroughs
Cellpack 145611 SHE 54-26/800 wall duct
Cellpack 145611 SHE 54-26/800 wall duct
€35.71
Into a basketIn the basketGo
