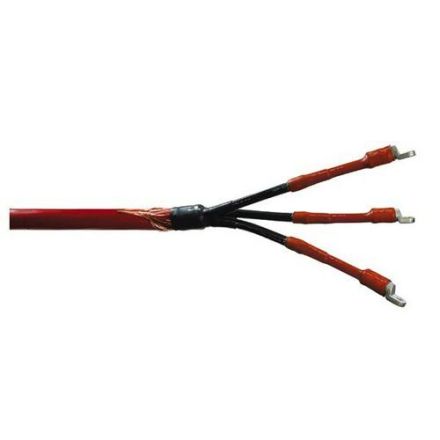

Cellpack 146300 CHE-3I A 24KV 10-35 3-wire indoor termination

In stock
SKU: 900972
€191.72
Into a basketIn the basketGo

Overview

3-conductor interior termination suitable for all 3-conductor plastic cables with different conductive layers and shield designs. Areas of application: Interior. Properties: For all application conditions, safe field control through permanently elastic silicone field control elements, combination of slip-on and heat-shrink components, large cross-section range, quick, easy and safe installation, immediately ready for use. Scope of delivery: splitter cap, heat-shrink tubing (tracking-resistant), heat-shrink tubing, silicone field control elements, silicone shields, roller spring, sealing tape, small assembly materials, assembly instructions.

PropertyValue
Suitable for indoor use:yes
Suitable for outdoor use:no
Type of end closure:Heat shrink
Material of the insulation material:Plastic
Number of cores:3
Cable lug included:no
Nominal cross section:10 to 35 mm²

Characteristics

HABCHE-3I A 24KV 10-35
ManufacturerCellpack
HAN146300
GTIN4010311023038
Wire number3
Suitable for outdoor useNo
Nominal cross section10 to 35 mm²
Material of the insulation materialPlastic
Cellpack 146300 CHE-3I A 24KV 10-35 3-wire indoor termination
Cellpack 146300 CHE-3I A 24KV 10-35 3-wire indoor termination
€191.72
Into a basketIn the basketGo
