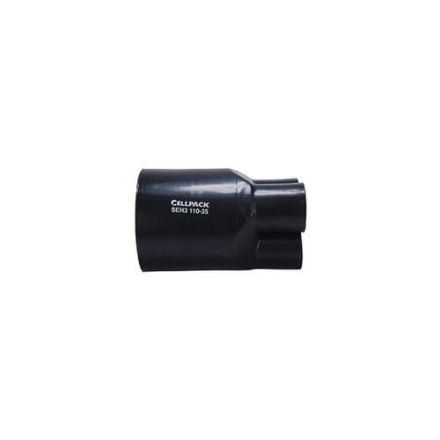

Cellpack 169711 SEH3 110-35 shrink distribution cap

In stock
SKU: 900826
€28.90
Into a basketIn the basketGo

Overview

Sealing distribution cap for plastic, rubber and paper-insulated cables. Areas of application: Indoors, outdoors. Properties: Stabilized against UV rays, free from substances that impair paint wetting, halogen-free, absolutely moisture-proof, pressure-tight, very good electrical properties, very good mechanical properties. Scope of delivery: Heat-shrink distribution cap.

PropertyValue
Operating temperature:-40 to 100 °C
Inner diameter of finger after shrinking:17 mm
Inner diameter of finger before shrinking:51 mm
Shaft diameter before shrinking:110 mm
Shaft diameter after shrinking:35 mm
Total length after shrinking:218 mm
Nominal cross section:185 to 400 mm²
Design:for 3-core cables and wires
Type:Heat shrink

Characteristics

HABSEH3 110-35
Minimal order5 pieces
ManufacturerCellpack
HAN169711
GTIN4010311041186
VersionFor 3-core cables and wires
Operating temperatur-40 to 100 °C
Nominal cross section185 to 400 mm²
TypeHeat shrink
