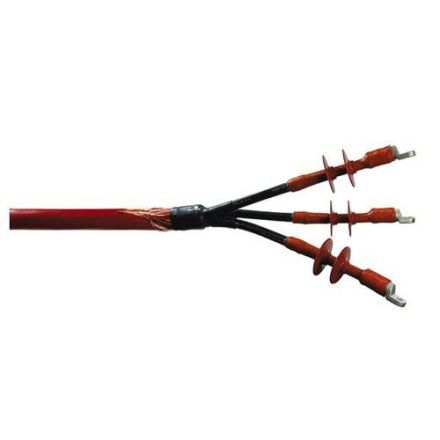

Cellpack 171756 CHE-3F A 17KV 70-240 3-wire outdoor termination

In stock
SKU: 900955
€198.28
Into a basketIn the basketGo

Overview

3-conductor outdoor termination suitable for all 3-conductor plastic cables with different conductive layers and shield designs. Areas of application: Outdoor. Properties: Safe field control for all application conditions thanks to permanently elastic silicone field control elements, combination of slip-on and heat-shrink components, large cross-section range, quick, easy and safe installation, immediately ready for use. Scope of delivery: Distribution cap, heat-shrink tubing (tracking-resistant), heat-shrink tubing, silicone field control elements, silicone shields, roller spring, sealing tape, small assembly materials, assembly instructions.

PropertyValue
Suitable for indoor use:no
Suitable for outdoor use:yes
Type of end closure:Heat shrink
Material of the insulation material:Plastic
Number of cores:3
Cable lug included:no
Nominal cross section:70 to 240 mm²

Characteristics

HABCHE-3F A 17KV 70-240
ManufacturerCellpack
HAN171756
GTIN4010311041834
Wire number3
Suitable for outdoor useYes
Nominal cross section70 to 240 mm²
Material of the insulation materialPlastic
Cellpack 171756 CHE-3F A 17KV 70-240 3-wire outdoor termination
Cellpack 171756 CHE-3F A 17KV 70-240 3-wire outdoor termination
€198.28
