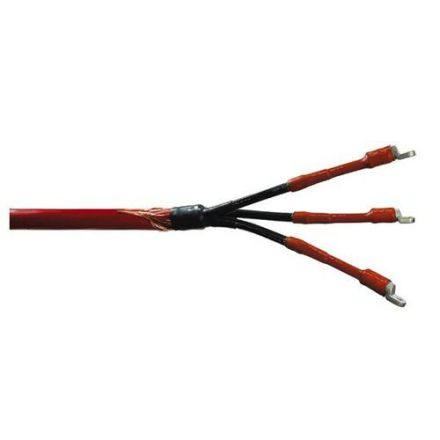

Cellpack 171763 CHE-3I A 17kV 185-400 3-conductor indoor termination

In stock
SKU: 902033
€231.27
Into a basketIn the basketGo

Overview

3-conductor interior termination suitable for all 3-conductor plastic cables with different conductive layers and shield designs. Areas of application: Interior. Properties: For all application conditions, safe field control through permanently elastic silicone field control elements, combination of slip-on and heat-shrink components, large cross-section range, quick, easy and safe installation, immediately ready for use. Scope of delivery: splitter cap, heat-shrink tubing (tracking-resistant), heat-shrink tubing, silicone field control elements, silicone shields, roller spring, sealing tape, small assembly materials, assembly instructions.

PropertyValue
Suitable for indoor use:yes
Suitable for outdoor use:no
Type of end closure:Heat shrink
Material of the insulation material:Plastic
Number of cores:3
Cable lug included:no
Nominal cross section:185 to 400 mm²

Characteristics

HABCHE-3I A 17kV 185-400
ManufacturerCellpack
HAN171763
GTIN4010311041902
Wire number3
Suitable for outdoor useNo
Nominal cross section185 to 400 mm²
Material of the insulation materialPlastic
Cellpack 171763 CHE-3I A 17kV 185-400 3-conductor indoor termination
Cellpack 171763 CHE-3I A 17kV 185-400 3-conductor indoor termination
€231.27
Into a basketIn the basketGo
