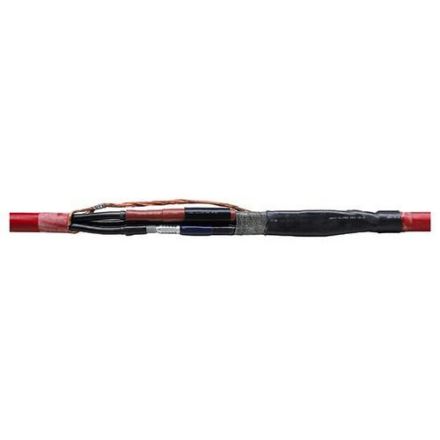

Cellpack 194301 CHM3 24KV 10-35 3-wire connecting sleeve

In stock
SKU: 901088
€473.49
Into a basketIn the basketGo

Overview

3-conductor connection sleeve suitable for all 3-conductor plastic cables. Enables the connection of cables of different cross-sections and conductor materials, even with different cable constructions in terms of conductive layer and shield design. Suitable for press connectors. Areas of application: Indoors, outdoors, soil, water, installation ducts. Properties: Safe field control through permanently elastic silicone field control elements, large line and cable cross-section range, quick, easy and safe installation, immediately ready for use. Scope of delivery: Thick-walled heat-shrink insulating hoses, thick-walled heat-shrink outer hose with thermoplastic adhesive, silicone field control element, copper braided hose, roller springs, field-controlling blue filler tape, small assembly materials, assembly instructions.

PropertyValue
Nominal conductor cross-section:10 to 35 mm²
Number of conductors:3
Halogen-free:no
Design:Heat shrink
Mining approval:no
With concentric shielding:yes
For connecting paper-insulated cables with plastic-insulated cables:no
Suitable for:other
Rated voltage U0/U (Um):12.7/22 (24) kV
Insulating material:Plastic
Connection accessories supplied:without

Characteristics

Number of conductors3
Connection accessories includedWithout
Nominal conductor cross-section10 to 35 mm²
Rated voltage U0/U (Um)12,7/22 (24) kV
With concentric shieldingYes
For connecting paper-insulated cables with plastic-insulated cablesNo
HABCHM3 24KV 10-35
ManufacturerCellpack
HAN194301
GTIN4010311047430
VersionHeat shrink
Mining licenseNo
Suitable forOther
Halogen freeNo
Material of the insulation materialPlastic
Cellpack 194301 CHM3 24KV 10-35 3-wire connecting sleeve
Cellpack 194301 CHM3 24KV 10-35 3-wire connecting sleeve
