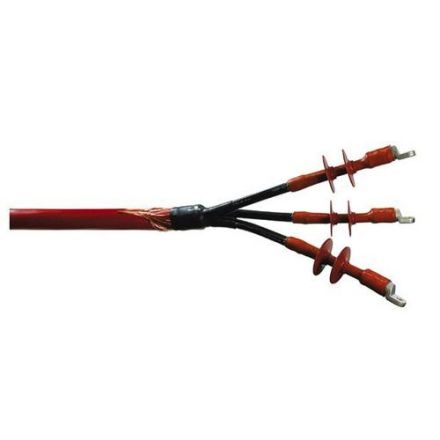

Cellpack 195366 CHE-3F A 17kV 16-50 3-conductor outdoor termination

In stock
SKU: 902029
€192.14
Into a basketIn the basketGo

Overview

3-conductor outdoor termination suitable for all 3-conductor plastic cables with different conductive layers and shield designs. Areas of application: Outdoor. Properties: Safe field control for all application conditions thanks to permanently elastic silicone field control elements, combination of slip-on and heat-shrink components, large cross-section range, quick, easy and safe installation, immediately ready for use. Scope of delivery: Distribution cap, heat-shrink tubing (tracking-resistant), heat-shrink tubing, silicone field control elements, silicone shields, roller spring, sealing tape, small assembly materials, assembly instructions.

PropertyValue
Suitable for indoor use:no
Suitable for outdoor use:yes
Type of end closure:Heat shrink
Material of the insulation material:Plastic
Number of cores:3
Cable lug included:no
Nominal cross section:16 to 50 mm²

Characteristics

HABCHE-3F A 17kV 16-50
ManufacturerCellpack
HAN195366
GTIN4010311049878
Wire number3
Suitable for outdoor useYes
Nominal cross section16 to 50 mm²
Material of the insulation materialPlastic
Cellpack 195366 CHE-3F A 17kV 16-50 3-conductor outdoor termination
Cellpack 195366 CHE-3F A 17kV 16-50 3-conductor outdoor termination
€192.14
Into a basketIn the basketGo
