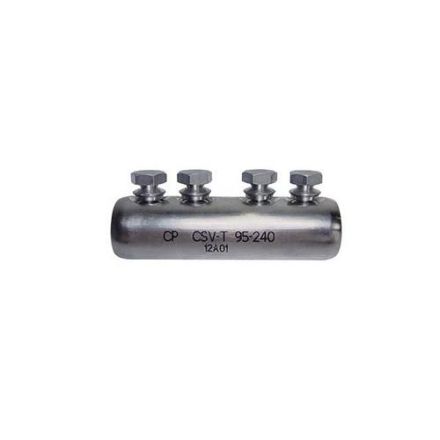

Cellpack 266811 CSV-T 95-240 for CU + AL (255412) aluminum screw connector

In stock

SKU: 900424

Price on request

€33.65

€0

Overview

Screw connector for aluminum and copper conductors RM/SM/RE/SE, suitable for connecting and transition sleeves. Areas of application: For connecting class 1 and 2 conductors in accordance with DIN-EN / IEC 60228. Scope of delivery: Screw connector, assembly instructions.

Property	Value
Oil stop/central bar:	yes
Number of screws:	4
Nominal cross-section aluminum, SM:	95 to 240 mm²
Nominal cross-section aluminum, RM:	95 to 240 mm²
Nominal cross-section aluminum, SE:	95 to 240 mm²
Nominal cross-section copper, RE:	95 to 240 mm²
Nominal cross-section aluminum, RE:	95 to 240 mm²
Nominal cross-section copper, SM:	95 to 240 mm²
Conductor material:	aluminium/copper
Nominal cross-section copper, RM:	95 to 240 mm²
With insulation:	no
With solder hole:	no
Protection class (IP):	other
