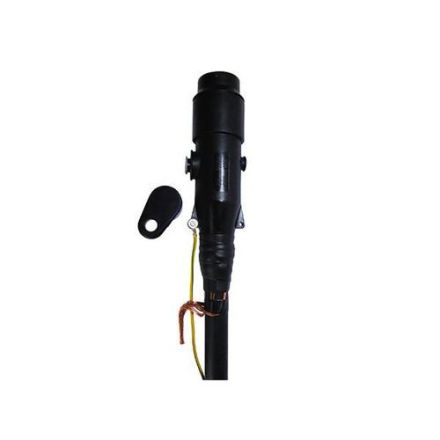

Cellpack 293797 CGS 250A 24kV 70-150/M/EGA plug

In stock
SKU: 901062
€432.43
Into a basketIn the basketGo

Overview

Straight cable plug connection is suitable for connecting all plastic-insulated single-core cables with different conductive layers and shield designs to switchgear and transformers for maximum mains voltage up to 24 kV with device plug connections for outer cone systems type A according to EN 50180. Areas of application: Indoor. Properties: With capacitive measuring point, individually tested, touch-safe due to outer conductive layer made of conductive EPDM, sheath fault testing of the cable possible when plugged in, both for Cu and Al conductors, quick, easy and safe installation, multi-range application thanks to integrated screw cable lug. Scope of delivery: Set of 3 cable plug parts, silicone field control elements, earthing set, screw cable lug for main conductor, small assembly material, assembly instructions.

PropertyValue
Suitable for indoor use:yes
Suitable for outdoor use:no
Rated voltage U0/U (Um):12.7/22 (24) kV
Nominal current according to EN 50180/EN 50181:A (250 A)
Type of connector:straight
Conductor connection type:screw connection
Suitable for number of wires:1
Shielded:yes
Cable lug included:yes
Nominal cross section:70 to 150 mm²
Earthing cable length:0.7 m
Width:110 mm
Length:248 mm

Characteristics

Rated voltage U0/U (Um)12,7/22 (24) kV
ShieldedYes
HABCGS 250A 24kV 70-150/M/EGA
ManufacturerCellpack
HAN293797
GTIN4010311151946
Width110 mm
Suitable for outdoor useNo
Length248 mm
Nominal cross section70 to 150 mm²
