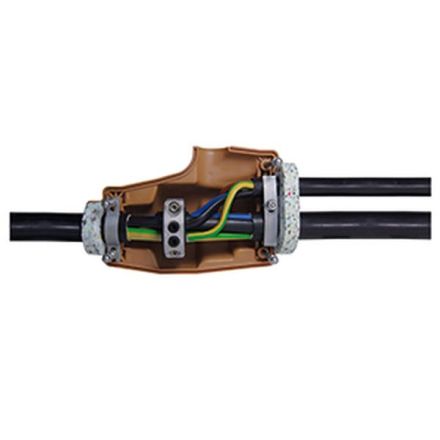

Cast resin branch sleeve can be used universally for branching cables with insulation made of PVC, PE, VPE and paper with and without concentric conductors as well as paper-insulated cables. Suitable for cable branch terminals on copper and aluminum conductors. Areas of application: Indoors, outdoors, soil, water, installation ducts. Properties: High-quality, brown, impact-resistant plastic molded shells, compact design, integrated strain relief, large filling opening for easy casting, resistant to chemical influences, resistant to alkaline earths, stabilized against UV rays, longitudinally and transversely watertight, high electrical insulation values, good mechanical strength, ready for use, simple and quick installation, time and cost saving. Scope of delivery: Hydrolysis-resistant PUR cast resin GG, ready to mix in a practical two-chamber mixing bag, seals, plastic molded shell with integrated strain relief, hexagon screws and nuts, assembly instructions.
| Property | Value |
| Nominal cross-section of branch cable: | 50 to 95 mm² |
| Number of conductors: | 4 |
| Design: | Cast resin |
| Type: | Parallel branch |
| Cable diameter of main cable: | 30 to 50 mm |
| Cable diameter of branch cable: | 27 to 44 mm |
| Mining approval: | no |
| Suitable for: | N(A)YY |
| Halogen-free: | no |
| Connection accessories included: | without |
