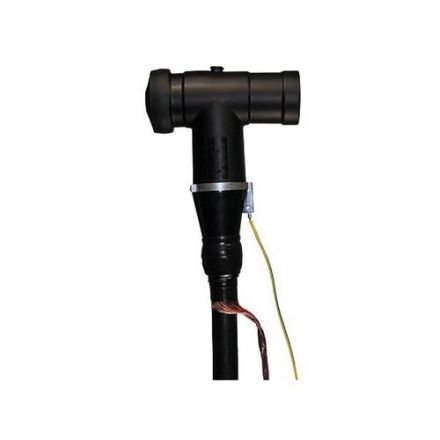

Cellpack 355433 CTS 630A 24KV 95-240 T-plug connection

In stock
SKU: 901979
€554.23
Into a basketIn the basketGo

Overview

Cable plug connection suitable for connecting all plastic-insulated single-core cables with different conductive layers and shield designs to switchgear and transformers. For maximum mains voltage up to 36 kV with device plug connections for external cone systems type C according to EN 50180 and EN 50181. Areas of application: Indoor, outdoor. Properties: With capacitive measuring point, individually tested, touch-safe due to outer conductive layer made of conductive EPDM, sheath fault testing of the cable possible when plugged in, both for Cu and Al conductors, quick, easy and safe installation, multi-range application thanks to integrated screw cable lug. Scope of delivery: Set of 3 cable plug parts, silicone field control elements, earthing set, screw cable lug for main conductor, small assembly material, assembly instructions.

PropertyValue
Suitable for indoor use:yes
Suitable for outdoor use:yes
Rated voltage U0/U (Um):12.7/22 (24) kV
Nominal current according to EN 50180/EN 50181:C (630 A)
Type of connector:T-connector
Conductor connection type:Screw connection
Suitable for number of wires:1
Shielded:yes
Cable lug included:yes
Nominal cross section:95 to 240 mm²
Earthing cable length:0.7 m
Width:85 mm
Height:250 mm
Length:194 mm

Characteristics

Rated voltage U0/U (Um)12,7/22 (24) kV
ShieldedYes
HABCTS 630A 24KV 95-240
ManufacturerCellpack
HAN355433
GTIN4010311171883
Width85 mm
Suitable for outdoor useYes
Height250 mm
Length194 mm
Nominal cross section95 to 240 mm²
