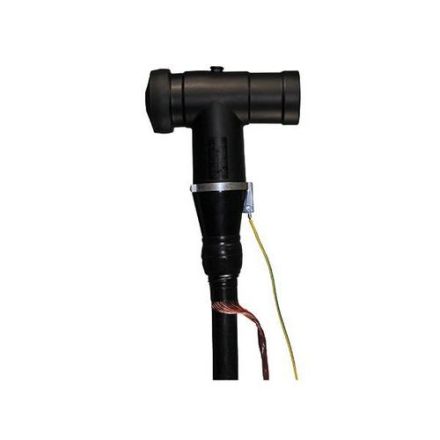

Cable plug connection suitable for connecting all plastic-insulated single-core cables with different conductive layers and shield designs to switchgear and transformers. For maximum mains voltage up to 36 kV with device plug connections for external cone systems type C according to EN 50180 and EN 50181. Areas of application: Indoor, outdoor. Properties: With capacitive measuring point, individually tested, touch-safe due to outer conductive layer made of conductive EPDM, sheath fault testing of the cable possible when plugged in, both for Cu and Al conductors, quick, easy and safe installation, multi-range application thanks to integrated screw cable lug. Scope of delivery: Set of 3 cable plug parts, silicone field control elements, earthing set, screw cable lug for main conductor, small assembly material, assembly instructions.
