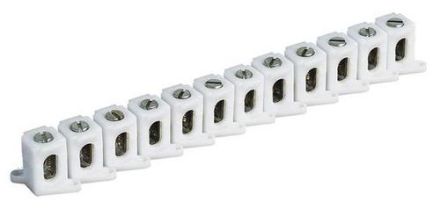

Cellpack 446314 KOV AK-SET 12x 16qmm screw terminal

In stock

SKU: 917701

Price on request

€34.06

€0

Overview

Screw branch terminal for connecting and branching aluminum and copper conductors. Properties: tinned brass terminal, separable, halogen-free. Test standard: EN 60998-2-1:2004. Scope of delivery: 12 screw branch terminals.

Property	Value
Surface:	tinned
Nominal cross-section of main conductor, SM:	6 to 16 mm²
Nominal cross-section of main conductor, SE:	6 to 16 mm²
Nominal cross-section of branch conductor, SM/RM:	6 to 16 mm²
Nominal cross-section of branch conductor, SE/RE:	6 to 16 mm²
Terminal insulated:	yes
Connection type:	screw connection
Clamping channel opening Branch conductor:	open on both sides
Clamping channel opening Main conductor:	open on both sides
Branch conductor material:	aluminium/copper
Main conductor material:	aluminium/copper
