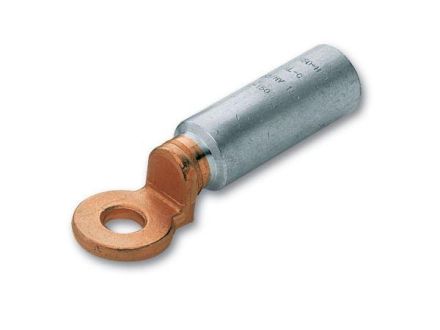

Cembre 2764310 CAAD95-M12 bimetallic cable lug

Cembre 2764310 CAAD95-M12 bimetallic cable lug

In stock

SKU: 718441

Price on request

€19.18

€0

Into a basketIn the basketGo

Overview

CAAD95-M12 compression cable lug AL-CU DIN46329 95qmmM12

Property	Value
Suitable for Al/St ropes:	yes
According to DIN:	no
St nominal cross section:	95.00 mm²
Connection thread size (metric):	12
Longitudinal seal:	yes
Code number:	22
Material:	Aluminium/copper
Cross-sectional shape:	round
Nominal cross section aluminum, SE:	120.00 mm²
Nominal cross-section aluminum, RM/SM:	95.00 mm²
Number of mounting holes:	1
Sleeve shape:	long

Characteristics

Suitable for Al/St cablesYes

Cross-sectional shapeAround

Nominal cross-section aluminum, RM/SM95.00 mm²

Nominal cross-section aluminum, SE120.00 mm²

Longitudinally sealedYes

HABCAAD95-M12 bimetallic

Minimal order3 pieces

Manufacturer

HAN2764310

GTIN8016692844930

Connection thread size (metric)12

Number of mounting holes1

Sleeve shapeLong

Code number22

According to DINNo

MaterialAluminium/Copper

Cembre 2764310 CAAD95-M12 bimetallic cable lug

Cembre 2764310 CAAD95-M12 bimetallic cable lug

Price on request

€19.18

€0

Into a basketIn the basketGo
