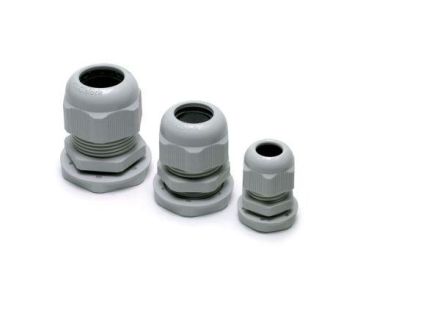

Cembre 3001083 1900.11/X MAXIBLOCK PG 11 light grey PG screw connection

In stock

SKU: 718367

Price on request

€0.61

€0

Overview

Fixation on the mattress, safety system, 3 illuminated temperature levels, top/bottom: fleece, removable switch, machine washable up to 30 °C

Property	Value
Wrench size:	22.00 mm
Nominal thread size metric/PG:	11
Suitable for cable diameters:	5.00 to 10 mm
Protection class (IP):	IP68
Operating temperature:	-20.00 to 90 °C
Halogen-free:	no
Thread length:	8.00 mm
Thread type:	PG
Design:	straight
Color:	light gray
Material:	plastic
With strain relief:	yes
Surface:	untreated
Hexagon corner dimension:	22.00 mm
Type of seal:	Sealing ring
Bending protection:	no
RAL number:	7035
Material quality:	Polyamide (PA)
Fiberglass reinforced:	no
With lock nut:	yes
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
