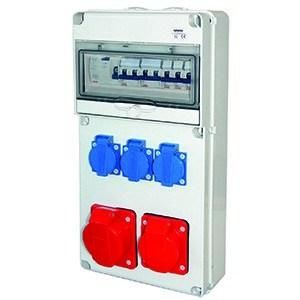

Gewiss AS05070 3xST/230/16/3P IEC400/32/16/5P socket combination

In stock
SKU: 663369
€323.37
Into a basketIn the basketGo

Overview

IEC socket combination wired ready for connection. The DIN rail devices are mounted under a transparent operating flap. The operating flap can be retrofitted with a safety lock. The upper part is designed as a hinge on both sides as standard using ball head screws. The housing can be mounted either internally or externally with wall brackets (accessories). With appropriate accessories, mast mounting, conversion with a carrying handle or stand frame is possible. With 2 holes each at the top and bottom. Including 1 M32 cable gland and 3 M32 locking screws. Residual current circuit breaker 40/0.03A 4-pole type A, circuit breaker C characteristic / switching capacity 10kA. For circuit breakers in compact design, switching capacity 6kA.

Property Value
CEE socket - 16 A: 1x16A5p400V
CEE socket - 32 A: 1x32A5p400V
CEE socket - 63 A: without
CEE socket - 125A: without
Number of SCHUKO sockets: 3
Width: 220 mm
Height: 435 mm
Depth: 130 mm
Protection: LS switch
FI circuit breaker: FI with IFN 0.03 A (standard)
Feed-in/connection option: 2 lines (ring line/for looping through)
Handling: Wall mounting
Material of the housing: plastic
Protection class (IP): IP54
Military version: no
Number of circuit breakers: 5
Type of mains connection: other
Color: gray

Characteristics

Number of SCHUKO sockets3
HAB3xST/230/16/3P IEC400/32/16/5P
ManufacturerGewiss
HANAS05070
GTIN8011564813526
Width220 mm
ColorGray
Height435 mm
Military versionNo
IP protection)IP54
Depth130 mm
Housing materialPlastic
Gewiss AS05070 3xST/230/16/3P IEC400/32/16/5P socket combination
Gewiss AS05070 3xST/230/16/3P IEC400/32/16/5P socket combination
€323.37
Into a basketIn the basketGo
