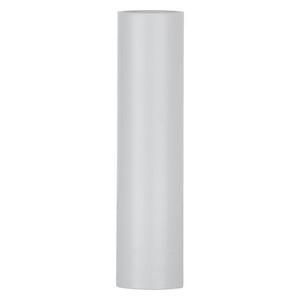

Gewiss DX26240 HF rigid 40 mm class 43211 2 m grey installation pipe

In stock
SKU: 658290
€19.37
Into a basketIn the basketGo

Overview

Rigid electrical installation pipe without sleeve, non-flame propagating RKHF15 in accordance with DIN EN 61386-12 (VDE 605-12) / DIN EN 61386:2004 + A11:2010, halogen-free in accordance with EN60754-2 with high pressure and impact resistance for laying in surface-mounted installations, as well as for laying on wood and in machine and system installations. Direct sunlight must be avoided when laying outdoors. Operating temperature -5°C to +60°C.

Property Value
Outer diameter: 40 mm
Inner diameter: 32.8 mm
Highly slippery inner layer: no
Material: Polypropylene (PP)
With sleeve: no
Color: gray
Halogen-free: yes
Flame-retardant version: yes
Bending behavior: rigid
Compressive strength class: heavy (class 4)
Impact resistance: heavy (class 4)
Surface-mounted: yes
On wood: yes
Hollow wall: yes
Suitable for concrete installation: no
Machinery and plant installation: yes
Underfloor installation (screed): no
Outdoor installation: yes
Laying in the ground: no
Operating temperature: -5 to 90 °C
RAL number: 7035

Characteristics

Inner diameter32.8 mm
Bending behaviorRigid
HABHF rigid 40 mm class 43211 2 m grey
Minimal order30 meters
ManufacturerGewiss
HANDX26240
GTIN8011564247765
Outer diameter40 mm
Operating temperatur-5 to 90 °C
ColorGray
Halogen freeYes
RAL number7035
Impact resistanceSevere (class 4)
MaterialPolypropylene (PP)
