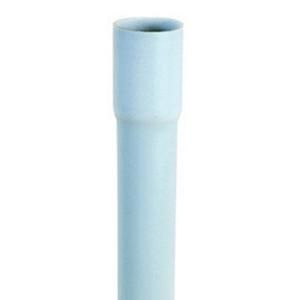

Gewiss DX27750 IRL B/50 3MT socketed M50 light grey installation pipe rigid

In stock
SKU: 658295
€4.07
Into a basketIn the basketGo

Overview

Rigid electrical installation pipe with molded sleeve, non-flame propagating IRL according to DIN EN 61386-12 (VDE 605-12) / DIN EN 61386:2004 + A11:2010 made of PVC with medium pressure and impact resistance for laying in surface-mounted installations, as well as for laying on wood and in machine and system installations. Direct sunlight must be avoided when laying outdoors. Operating temperature -5°C to +60°C.

Property Value
Outer diameter: 50 mm
Inner diameter: 42.7 mm
Highly slippery inner layer: no
Material: Polyvinyl chloride (PVC)
With sleeve: yes
Color: grey
Halogen-free: no
Flame-retardant version: yes
Bending behavior: rigid
Compressive strength class: medium (class 3)
Impact resistance: medium (class 3)
Surface-mounted: yes
On wood: yes
Hollow wall: yes
Suitable for concrete installation: no
Machinery and plant installation: yes
Underfloor installation (screed): no
Outdoor installation: yes
Laying in the ground: no
Operating temperature: -5 to 60 °C
RAL number: 7035

Characteristics

Inner diameter42.7 mm
Bending behaviorRigid
HABIRL B/50 3MT socketed M50 light grey
Minimal order15 meters
ManufacturerGewiss
HANDX27750
GTIN8018678013064
Outer diameter50 mm
Operating temperatur-5 to 60 °C
ColorGray
Halogen freeNo
RAL number7035
Impact resistanceMedium (class 3)
MaterialPolyvinyl chloride (PVC)
Gewiss DX27750 IRL B/50 3MT socketed M50 light grey installation pipe rigid
Gewiss DX27750 IRL B/50 3MT socketed M50 light grey installation pipe rigid
€4.07
Into a basketIn the basketGo
