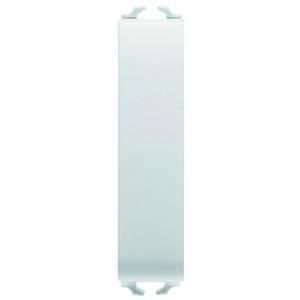

Gewiss GW10021 1/2M 1P 10AX white switch

Gewiss GW10021 1/2M 1P 10AX white switch

In stock

SKU: 658605

Price on request

€7.07

€0

Into a basketIn the basketGo

Overview

Modular switching, control and plug-in devices as well as accessories for the CHORUS switch range

Property	Value
Color:	white
Suitable for protection class (IP):	IP41
Circuit type:	1-pole off switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Built-in installation
Push button:	yes
Composition:	Modular device for installation switch programs
Mounting type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	no
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9003
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular construction):	1
Lighting:	no
Rated current:	10 A
Installation depth:	20 mm
Device depth:	30 mm
Device width:	11 mm
Device height:	44 mm
With mounting plate:	no
Text field/labeling area:	no
Min. Depth of the device box:	35 mm

Characteristics

Feedback contactNo

Number of actuating rockers1

Circuit type1-pole switch

LightingNo

Switching current for fluorescent lamps10 AX

Push buttonYes

Washing machine switchNo

HAB1/2M 1P 10AX white

Manufacturer

HANGW10021

GTIN8011564260993

Connection typeScrew terminal

Number of modules (for modular construction)1

Surface finishGlittering

Operating modeRocker/Button

Mounting typeSnap into place

Rated current10A

Installation depth20 mm

Color

Suitable for protection class (IP)IP41

Device width11 mm

Device height44 mm

Device depth30 mm

Halogen freeNo

Min. depth of the device box35 mm

With mounting plateNo

Mounting typeBuilt-in installation

Nominal voltage250V

SurfaceUntreated

RAL number (similar)9003

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs
