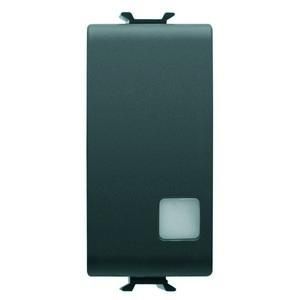

Gewiss GW12005 illuminated 1M 2P 16AX black switch

Gewiss GW12005 illuminated 1M 2P 16AX black switch

In stock

SKU: 658881

Price on request

€13.23

€0

Overview

Modular switching, control and plug-in devices as well as accessories for the CHORUS switch range. The switch can be illuminated with a bulb lamp with connecting cable, which must be ordered separately.

Property	Value
Color:	black
Suitable for protection class (IP):	IP41
Circuit type:	2-pole switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Built-in installation
Push button:	yes
Composition:	Modular device for installation switch programs
Fastening type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	no
Surface:	untreated
Version the surface:	matt
Nominal voltage:	250 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	1
Lighting:	optional
Lighting type:	LED replaceable
Lighting function:	Control and orientation
Rated current:	16 A
Installation depth:	20 mm
Device depth:	30 mm
Device width:	22 mm
Device height:	44 mm
With mounting plate:	no
Text field/labeling area:	yes
Min. depth of the device box:	35 mm
