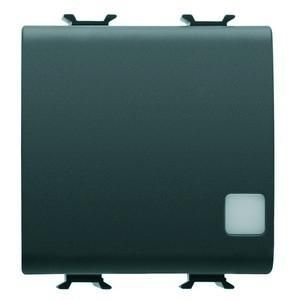

Gewiss GW12035F illuminated 2M 2P 16AX plug-in terminal black switch

Gewiss GW12035F illuminated 2M 2P 16AX plug-in terminal black switch

In stock

SKU: 658895

Price on request

€24.52

€0

Into a basketIn the basketGo

Overview

Modular switching, control and plug-in devices as well as accessories for the CHORUS switch range

Property	Value
Color:	black
Suitable for protection class (IP):	IP41
Circuit type:	2-pole switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Built-in installation
Push button:	yes
Composition:	Modular device for installation switch programs
Mounting type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	no
Surface:	untreated
Surface finish:	matt
Nominal voltage:	250 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	Plug-in terminal
Number of modules (with modular design):	2
Lighting:	optional
Lighting type:	LED replaceable
Lighting function:	Control and orientation
Rated current:	16 A
Installation depth:	20 mm
Device depth:	30 mm
Device width:	44 mm
Device height:	44 mm
With mounting plate:	no
Text field/labeling area:	yes
Min. depth of the device box:	35 mm

Characteristics

Feedback contactNo

Number of actuating rockers1

Circuit typeSwitch 2-pole

LightingOptional

Switching current for fluorescent lamps16 AX

Push buttonYes

Washing machine switchNo

Lighting functionControl and orientation

HABIlluminated 2M 2P 16AX plug terminal black

Manufacturer

HANGW12035F

GTIN8011564269859

Connection typePlug-in terminal

Number of modules (for modular construction)2

Surface finishFrosted

Operating modeRocker/Button

Mounting typeSnap into place

Rated current16A

Installation depth20 mm

Color

Suitable for protection class (IP)IP41

Device width44 mm

Device height44 mm

Device depth30 mm

Halogen freeNo

Min. depth of the device box35 mm

With mounting plateNo

Mounting typeBuilt-in installation

Nominal voltage250V

SurfaceUntreated

Text field/label areaYes

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs

Gewiss GW12035F illuminated 2M 2P 16AX plug-in terminal black switch

Gewiss GW12035F illuminated 2M 2P 16AX plug-in terminal black switch

Price on request

€24.52

€0

Into a basketIn the basketGo
