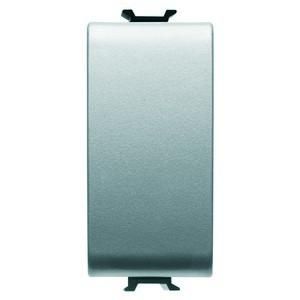

Gewiss GW14051 1P 1M 16AX Titanium changeover switch

Gewiss GW14051 1P 1M 16AX Titanium changeover switch

In stock

SKU: 657768

Price on request

€9.23

€0

Into a basketIn the basketGo

Overview

Modular switching, control and plug-in devices as well as accessories for the CHORUS switch range

Property	Value
Color:	Titanium
Suitable for protection class (IP):	IP41
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Built-in installation
Push button:	yes
Composition:	Modular device for installation switch programs
Mounting type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	no
Surface:	painted
Surface finish:	glossy
Nominal voltage:	250 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	1
Lighting:	no
Rated current:	16 A
Installation depth:	20 mm
Device depth:	30 mm
Device width:	22 mm
Device height:	44 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of device box:	25 mm

Characteristics

Feedback contactNo

Number of actuating rockers1

Circuit typeChangeover switch

LightingNo

Switching current for fluorescent lamps16 AX

Push buttonYes

Washing machine switchNo

HAB1P 1M 16AX Titanium

Manufacturer

HANGW14051

GTIN8011564265547

Connection typeScrew terminal

Number of modules (for modular construction)1

Surface finishGlittering

Operating modeRocker/Button

Mounting typeSnap into place

Rated current16A

Installation depth20 mm

Color

Suitable for protection class (IP)IP41

Device width22 mm

Device height44 mm

Device depth30 mm

Halogen freeNo

Min. depth of the device box25 mm

With mounting plateNo

Mounting typeBuilt-in installation

Nominal voltage250V

SurfacePainted

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs

Gewiss GW14051 1P 1M 16AX Titanium changeover switch

Gewiss GW14051 1P 1M 16AX Titanium changeover switch

Price on request

€9.23

€0

Into a basketIn the basketGo
