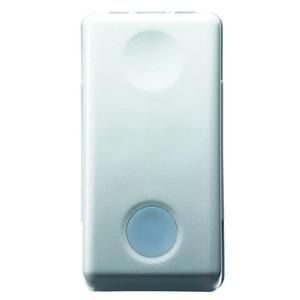

Gewiss GW20588 System illuminated 1P 1M 16AX white changeover switch

Gewiss GW20588 System illuminated 1P 1M 16AX white changeover switch

In stock

SKU: 659805

Price on request

€5.77

€0

Into a basketIn the basketGo

Overview

Modular switching, control and plug-in devices as well as accessories for the SYSTEM switch range

Property	Value
Color:	white
Suitable for protection class (IP):	IP41
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Built-in installation
Push button:	yes
Composition:	Modular device for installation switch programs
Mounting type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	no
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9016
Nominal voltage:	250 V
Switching current for fluorescent lamps:	16 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	1
Lighting:	optional
Lighting type:	LED replaceable
Lighting function:	Control and orientation
Rated current:	16 A
Installation depth:	30 mm
Device depth:	40 mm
Device width:	24 mm
Device height:	46 mm
With mounting plate:	no
Text field/labeling area:	yes
Min. depth of the device box:	35 mm

Characteristics

Feedback contactNo

Number of actuating rockers1

Circuit typeChangeover switch

LightingOptional

Switching current for fluorescent lamps16 AX

Push buttonYes

Washing machine switchNo

Lighting functionControl and orientation

HABSystem illuminated 1P 1M 16AX white

Manufacturer

HANGW20588

GTIN8011564132979

Connection typeScrew terminal

Number of modules (for modular construction)1

Surface finishGlittering

Operating modeRocker/Button

Mounting typeSnap into place

Rated current16A

Installation depth30 mm

Color

Suitable for protection class (IP)IP41

Device width24 mm

Device height46 mm

Device depth40 mm

Halogen freeNo

Min. depth of the device box35 mm

With mounting plateNo

Mounting typeBuilt-in installation

Nominal voltage250V

SurfaceUntreated

RAL number (similar)9016

Text field/label areaYes

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs

Gewiss GW20588 System illuminated 1P 1M 16AX white changeover switch

Gewiss GW20588 System illuminated 1P 1M 16AX white changeover switch

Price on request

€5.77

€0

Into a basketIn the basketGo
