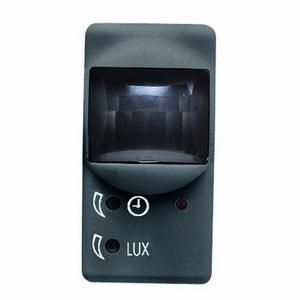

Gewiss GW21821 System 1 normally open 1M 3A black IR motion detector

Gewiss GW21821 System 1 normally open 1M 3A black IR motion detector

In stock

SKU: 659979

Price on request

€182.30

€0

Into a basketIn the basketGo

Overview

Modular switching, control and plug-in devices as well as accessories for the SYSTEM switch range

Property	Value
Width:	24 mm
Height:	46 mm
Design:	Motion detector
Color:	black
Rated voltage:	230 V
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	10 to 500 lx
Protection class (IP):	IP41
Max. switching capacity:	690 W
Voltage type:	AC
Max. range to one side:	8 m
Scan angle:	120 °
Suitable for wall mounting:	yes
Min. Duty cycle:	15 s
Max. duty cycle:	10 min
Creep-under protection/rear field monitoring:	no
Temperature:	-5 to 40 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. frontal range:	10 m
Max. Inrush current:	5 A
Sensor type:	passive infrared
Optimal mounting height:	1 m
Surface finish:	matt
Surface:	untreated
Material quality:	thermoplastic
Horizontal detection angle:	105 °
Frequency:	50 to 60 Hz
Halogen-free:	no
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	no
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	no
Connection type:	Screw terminal
Antibacterial treatment:	no
Min. Depth of the device box:	35 mm

Characteristics

Bridging switchNo

With signal unitNo

Response brightness10 to 500 lux

Forced shutdownNo

Max. inrush current5 A

Scanning angle120 °

Forced switching onNo

HABSystem 1 normally open 1M 3A black

Manufacturer

HANGW21821

GTIN8011564128293

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishFrosted

Width24 mm

Detection angle horizontal105°

Color

Remote controllableNo

Frequency50 to 60 Hz

Suitable for C-loadNo

Suitable for ceiling mountingNo

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeNo

Height46 mm

Constant light controlNo

Max. duty cycle10mins

Max. range frontal10m

Max. range to one side8m

Max. switching capacity690W

Min. duty cycle15s

Min. depth of the device box35 mm

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputNo

Nominal voltage230V

SurfaceUntreated

Optimal mounting height1m

IP protection)IP41

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-5 to 40 °C

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
