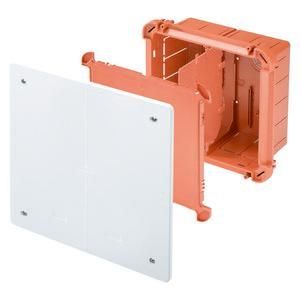

Gewiss GW48207 UP flat screw IP40 260x260x121 junction box

In stock

SKU: 657181

Price on request

€48.01

€0

Overview

Junction box for flush mounting with screw lid.

Property	Value
With screws:	yes
Depth:	121 mm
Length:	260 mm
Width:	260 mm
Material:	Plastic
Color:	red
Sealable:	yes
Halogen-free:	yes
Protection class (IP):	IP40
Shape:	square
Mounting type:	flush-mounted
Number of entries:	18
Design:	other
Design:	junction box/case
With nail tabs:	no
Windproof:	no
Introduction from the rear:	yes
Can be coupled:	yes
Housing feed-through through sealing membrane:	no
Cover fastening:	screwed
Functional integrity:	without
Inner depth:	119 mm
Surface:	untreated
Fastening of the Devices:	screws
For pipe diameter:	other
Pipe locking:	no
Clamp fixed in position:	no
Equipment:	without
Light hook fastening:	no
Socket:	without
With shielding:	no
Housing feedthrough through Breakout opening:	yes
With rotating ring:	no
Special application:	without
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	Mounting cover
Transparent cover:	no
