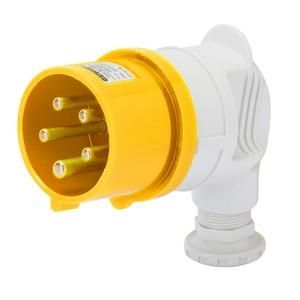

Gewiss GW60082 IEC angle 90° 110V 16A 4h 3P IP44 plug

Gewiss GW60082 IEC angle 90° 110V 16A 4h 3P IP44 plug

In stock

SKU: 660881

Price on request

€5.90

€0

Into a basketIn the basketGo

Overview

Plug for industrial applications in accordance with IEC 60 309 (EN 60 309) Connection technology: screw terminal, connection cross-section 1 - 2.5 mm² fine-stranded / 1.5 - 4 mm² single or multi-stranded,

Property	Value
IEC current:	16 A
Number of poles:	3
Voltage according to EN 60309-2:	110 V (50+60 Hz) yellow
Identification color:	yellow
Phase inverter:	no
Protection class (IP):	IP44
Connection technology:	screw terminal
Cable entry:	anti-kink sleeve
Plug direction:	right-angled
Time setting:	4 h
Material:	plastic
Military version:	no

Characteristics

Phase inverterNo

HABIEC angle 90° 110V 16A 4h 3P IP44

Manufacturer

HANGW60082

GTIN8011564009127

Connection technologyScrew terminal

IEC current16A

Cable entryAnti-kink sleeve

Identification colorYellow

Military versionNo

Number of poles3

IP protection)IP44

Voltage according to EN 60309-2110 V (50+60 Hz) yellow

Plug directionRectangular

Time position4 hours

MaterialPlastic

Gewiss GW60082 IEC angle 90° 110V 16A 4h 3P IP44 plug

Gewiss GW60082 IEC angle 90° 110V 16A 4h 3P IP44 plug

Price on request

€5.90

€0

Into a basketIn the basketGo
