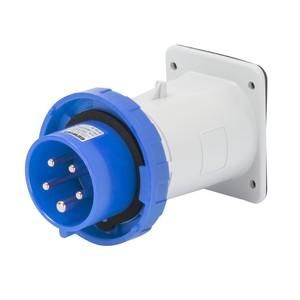

Gewiss GW60226 IEC 230V 16A 6h 3P IP67 panel mount connector

In stock

SKU: 660949

Price on request

€9.65

€0

Overview

Attached device plug for industrial applications in accordance with IEC 60 309 (EN 60 309) flange dimensions (LxW) 85x75 mm, connection technology: screw terminal, connection cross-section 1 - 2.5 mm² fine-stranded / 1.5 - 4 mm² single or multi-stranded,

Property	Value
IEC current:	16 A
Number of poles:	3
Connection technology:	screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	200-250 V (50+60 Hz) blue
Time setting:	6 h
Identification color:	blue
Protection class (IP):	IP67
Material:	Plastic
Phase inverter:	no
Design:	Appliance plug
Military version:	no
Rated voltage:	200 to 250 V
Rated frequency:	50 to 60 Hz
