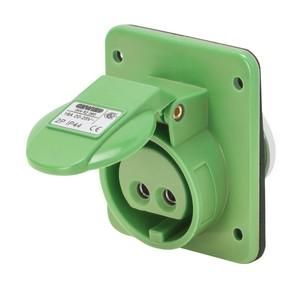

Gewiss GW62271 IP44 10°2P 16A 24/42V 11 panel socket

In stock
SKU: 657920
€12.27
Into a basketIn the basketGo

Overview

Floor-mounted socket for industrial applications in accordance with IEC 60 309 (EN 60 309) inclination 10° nickel-plated contacts, connection technology: screw terminal, connection cross-section 1 - 2.5 mm² fine-stranded / 1.5 - 4 mm² single or multi-stranded,

Property Value
IEC current: 16 A
Number of poles: 2
Connection technology: screw terminal
Plug direction: angled
Voltage according to EN 60309-2: 20-25 V / 40-50 V (>400-500 Hz) green
Time setting: 11 h
Identification color: green
Protection class (IP): IP44
Material: Plastic
Military version: no
Horizontal hole spacing: 60 mm
Vertical hole spacing: 60 mm
Flange dimension horizontal: 75 mm
Flange dimension vertical: 85 mm
Cable entry: other
Rated voltage: 20 to 50 V
Rated frequency: 401 to 500 Hz

Characteristics

Rated frequency401 to 500 Hz
HABIP44 10°2P 16A 24/42V 11
ManufacturerGewiss
HANGW62271
GTIN8011564008311
Connection technologyScrew terminal
Rated voltage20 to 50 V
IEC current16A
Cable entryOther
Identification colorGreen
Military versionNo
Number of poles2
IP protection)IP44
Plug directionAngled
Time position11am
MaterialPlastic
