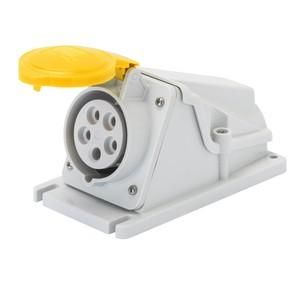

Gewiss GW62474 IEC 90° 110V 16A 4h 3P IP44 wall socket

In stock

SKU: 661067

Price on request

€9.28

€0

Overview

Wall socket for industrial applications in accordance with IEC 60 309 (EN 60 309) with cable grommet 29 mm, connection technology: screw terminal, connection cross-section 1 - 2.5 mm² fine-stranded / 1.5 - 4 mm² single or multi-stranded,

Property	Value
IEC current:	16 A
Number of poles:	3
Connection technology:	screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	110 V (50+60 Hz) yellow
Time setting:	4 h
Identification color:	yellow
Protection class (IP):	IP44
Material:	Plastic
Military version:	no
Horizontal hole spacing:	70 mm
Vertical hole spacing:	138 mm
Flange dimension horizontal:	90 mm
Flange dimension vertical:	160 mm
Cable entry:	other
Rated voltage:	100 to 130 V
Rated frequency:	50 to 60 Hz
