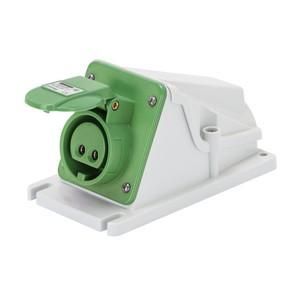

Gewiss GW62554 IP44 90°3P 32A 24/42V 11H wall socket

In stock
SKU: 657973
€19.37
Into a basketIn the basketGo

Overview

Wall socket for industrial applications in accordance with IEC 60 309 (EN 60 309) with 20 mm cable grommet, connection technology: screw terminal, connection cross-section 2.5 - 6 mm² fine-stranded / 2.5 - 10 mm² single or multi-stranded,

Property Value
IEC current: 32 A
Number of poles: 3
Connection technology: screw terminal
Plug direction: straight
Voltage according to EN 60309-2: 20-25 V / 40-50 V (>400-500 Hz) green
Time setting: 11 h
Identification color: green
Protection class (IP): IP44
Material: Plastic
Military version: no
Horizontal hole spacing: 70 mm
Vertical hole spacing: 138 mm
Flange dimension horizontal: 80 mm
Flange dimension vertical: 160 mm
Cable entry: other
Rated voltage: 20 to 50 V
Rated frequency: 401 to 500 Hz

Characteristics

Rated frequency401 to 500 Hz
HABIP44 90°3P 32A 24/42V 11H
ManufacturerGewiss
HANGW62554
GTIN8011564008779
Connection technologyScrew terminal
Rated voltage20 to 50 V
IEC current32 A
Cable entryOther
Identification colorGreen
Military versionNo
Number of poles3
IP protection)IP44
Plug directionStraight
Time position11am
MaterialPlastic
